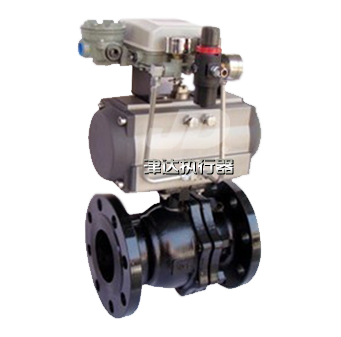

Pneumatic O-type shut off ball valve
With the features of small fluid resistance and fast opening and closing, the pneumatic O-type shut off ball valve is a valve with the smallest fluid resistance, it takes the compressed air as dynamic force, use the mechanical transmission of gears to actuate valve stem through the piston rack, rotate the ball body for 0~90° by means of the torque transmitted by angular travel and complete rapidly the opening and closing action or controlling action. The channel of ball core is smooth, difficult to deposit media and can perform pipelined pigging. It has also the advantages of simple structure, light weight and excellent sealing performance.

Main Technical Parameters

 Nominal diameters DN(mm)

10、15、20、25、32、40、50、65、80、100、125、150、200、250、300、400

 Nominal pressure PN (MPa)

 1.0、1.6、2.5、4.0、6.4、10.0、16.0

Equipped pneumatic actuator

Cylinder type single action

Cylinder type double action

 Input signal

220VAC、24VDC

Supply gas pressure

 3.5~7kgf/cm2

 Spring range

 40~200KPa，80~240KPa

Gas pipe/pressure gauge/electrical interface

 PT（NPT）1/4  /  PT（NPT）1/8  /  PF1/2（G1/2）

Hysteresis

 ±1.5%F.S

Sensitivity

 ±0.5%F.S    ±1.0%F.S

Environmental temperature

 -20~70℃

 Level of protection

IP66

Explosion-proof mark

 Exia II CT6 、Exd II BT6 、Exd II CT6

 Optional Accessories

 Air filtration pressure reducer, solenoid valves, limit switch, manual operating mechanism
