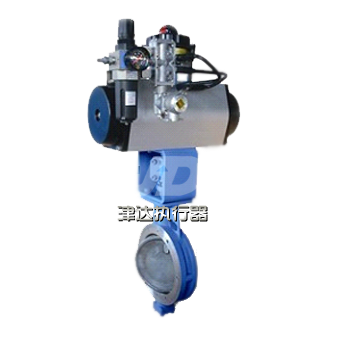

Pneumatic eccentric shut off butterfly valve

Adopting the eccentric multi-level metal hard sealed structure, the pneumatic eccentric shut off butterfly valve has no mechanical wear, can reach to zero leakage, possess excellent two-way sealing function, so it is the best device used in petroleum industry, chemical industry, metallurgy industry, electricity, food industry, medicine, water supply and drainage, pipeline for gas delivery with different media for controlling flow, cutting off or connecting the fluid. After adopting different materials, it can be suitable for different media, such as water, sewage, sea water, air, steam, coal gas, flammable gas, corrosive media, oil and food products and other media.



Main Technical Parameters

Nominal diameters DN(mm)

50、65、80、100、125、150、200、250、300、400、500、600……1500

 Nominal pressure PN (MPa)

1.0、1.6、2.5、4.0

 Equipped pneumatic actuator

 Cylinder type single action

Cylinder type double action

Input signal

220VAC、24VDC

 Supply gas pressure

250±15Ω

 Spring range

 3.5~7kgf/cm2

Spring range

 40~200KPa,80~240KPa

 Gas pipe/pressure gauge/electrical interface

 PT(NPT)1/4  /  PT(NPT)1/8  /  PF1/2(G1/2)

 Hysteresis

 ±1.5%F.S

Sensitivity

 ±0.5%F.S    ±1.0%F.S

 Environmental temperature

-20~70℃

 Level of protection

IP66

 Explosion-proof mark

Exia II CT6 、Exd II BT6 、Exd II CT6

 Optional Accessories

Air filtration pressure reducer, solenoid valves, limit switch, manual operating mechanism
