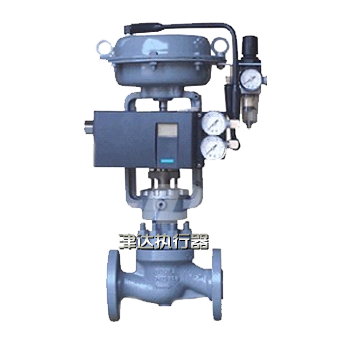

Pneumatic diaphragm control valve with single seat Equipped with multi-spring actuator, the pneumatic diaphragm control valve directly connected with single seat has the advantages of compact structure, light weight, sensitive actions, S streamlined fluid channel, small loss of pressure drop, large valve capacity, accurate flow characteristic and convenient disassembly and assembly. It is widely used for precise control of media, such as gas and liquid, the process parameters, such as pressure, flow, temperature and liquid level, shall be maintained at the given value. It is especially suitable for the workplace where the small leakage and balance pressure between front and back of valve can be allowed.
|
Main Technical Parameters
Nominal diameters DN(mm) |
10、15、20、25、32、40、50、65、80、100、125、150、200、250、300、400 |
|
Nominal pressure PN (MPa) |
1.0、1.6、2.5、4.0、6.4、10.0 |
|
Equipped pneumatic actuator |
Diaphragm type single action |
|
Input signal |
4~20mA |
|
Supply gas pressure |
1.4~7kgf/cm2(20~100psi) |
|
Diaphragm material |
Nitrile rubber with nylon cloth and ethylene propylene rubber with nylon cloth |
|
Spring range |
20~100KPa,40~200KPa,80~240KPa |
|
Gas pipe/pressure gauge/electrical interface |
PT(NPT)1/4 / PT(NPT)1/8 / PF1/2(G1/2) |
|
Hysteresis |
±1%F.S |
|
Sensitivity |
±0.2%F.S ±0.5%F.S |
|
Environmental temperature |
-20~70℃ |
|
Level of protection |
IP66 |
|
Explosion-proof mark |
Exia II CT6 、Exd II BT6 、Exd II CT6 |
|
Optional Accessories |
Positioner, air filtration pressure reducer, solenoid valves, limit switch, manual operating mechanism |
