Details Description

As an accessory product of PID controller or DCS system, the NS-835/WP-S835 intelligent manipulator is mainly used for manual adjustment during system operation or under exceptional circumstances and for operation as backup instruments when the main machine is in trouble or to be repaired. In accordance with site needs, the double LED digitals with high light brightness can be displayed or the double light beams and double LED digitals with high resolution can be displayed.

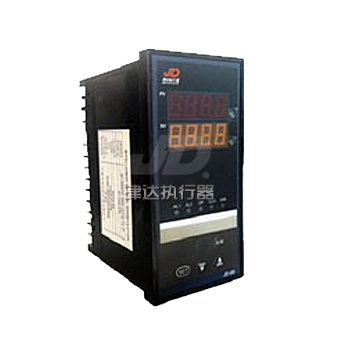

NS-835/WP-S835 Smart operator



Main Technical Indexes
Voltage of Power
Supply
AC 90V~265V (power supply of switch)
Measurement
accuracy
Digital ±0.5%FS±1(word)  beam ±1%
Measuring range Digital -1999~9999   beam 0~100%
Communication
interface
Standard serial communication interface RS-232C, RS-485, etc.
Power consumption  ≤5W (AC 90V~265V power supply of switch)
Operation
environment

 Environmental temperature; Humidity; No condensationAvoid corrosive gases in the air

Structure standard snap-in
