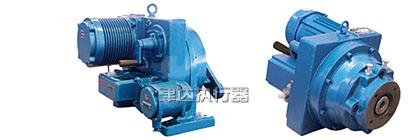

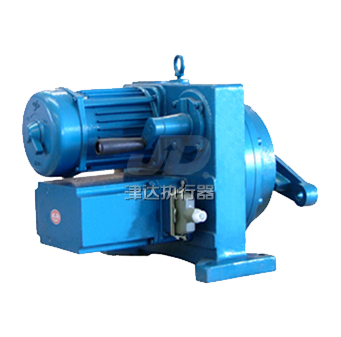

Electric Actuator with angular travel
　　DKJ series electric actuator is an execution unit in combination instruments of DDZ type electric unit, it takes the AC220V single-phase AC power supply as driving power, receives DC4 ~ 20mA control signal or switching value signal of DCS/PLC control system, controller or computer and moves based on angular displacement. Adopting the latest sensor element and control module which integrate the power transformer, rectification, voltage regulation, operational amplification and constant current, this product can ensure the reliability and stability of actuator.

product classification
Common type / Electronic type/ Direct connection type/ outdoor type/ explosive-proof type/ explosion-proof electronic type
Main Technical Parameters

Voltage of Power Supply

220V+10-15% 50Hz±1Hz

Output torque

100～14000Nm

Effective turning angle

0～100°

Input signal

Electronic DM: DC4～20mA

Explosion-proof electronic BD：DC4～20mA

Common type M: switch signal (relay signal)

Explosive-proof type BM: switch signal (relay signal)

Output signals

DC4～20mA (Load resistance is 500Ω or less)

Control accuracy

Basic error:±2.5%; Return difference≤1.5%; Dead area≤3%

Adjustable range of working travel

"zero point"±10%; "travel"35%～110%

Input channel resistance

250Ω

Level of protection

IP55～IP66

Explosion-proof mark

ExdIIBT4

   External wiring
The shielded cable shall be adopted for input and output signals. One cable cannot be used for power cord and signal line together

Type

Electric actuator

Explosion-proof actuator

Power cable

S=1.5mm2~2.5mm2

S=1.5mm2~2.5mm2

Signal cable

S=1.5mm2

 S=1.5mm2

Cable entry

PG16

PG16


Environmental Conditions

Environmental Conditions

Electric actuator

Explosion-proof actuator

Environmental temperature

Without space heater-10℃～70℃

-10℃～70℃

With space heater-35℃～60℃

Relative Humidity

≤95%

≤95%

Environmental gas

No corrosive gas

Mechanical vibration

XY210G. 0.2～34Hz. 30minutes

※ If you have special requirements for travel time, connection size, control mode, environment temperature and others, our company can produce customized product specially.
