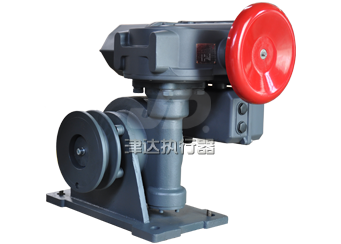

SKD Multi-rotary type electric actuator

  The SKD Multi-rotary type electric actuator is an actuator specially designed for cement industry, which can not only meet the multi-rotary but also output large torque. It receives the DC4~20mA analog quantity signal or contact control signal transmitted by DCS/PLC control system, controller or computer and completes automatic control task.


Main Technical Parameters


Voltage of Power Supply

Domestic Standard: 220V 50Hz±1Hz~380V 50Hz±1Hz 1Hz

Exported product can be customized: 110V~480V (50Hz~60Hz)

Output torque

1000~16000Nm

Input signal

DC4~20mA, switching signal (relay signal), pulse signals, and others

Output signals

DC4~20mA (Load resistance is 500Ω or less)

Control accuracy

Basic error:±1%; Return difference≤1%; Dead area≤1%

Adjustable range of working travel

"zero point"±10%; "travel"35%~110%

Display mode

LED digital code

Level of protection

IP55~IP68



External wiring
The shielded cable shall be adopted for input and output signals. One cable cannot be used for power cord and signal line together

Power cable

S=1.5mm2~4mm2

Signal cable

S=1.5mm2

Cable entry

 PG16 PF3/4″

Environmental Conditions

Environmental temperature

Without space heater -10℃~70℃

With space heater -35℃~60℃

Relative Humidity

≤95%

Environmental gas

No corrosive gas

Mechanical vibration

XY210G. 0.2~34Hz. 30minutes

※ If you have special requirements for travel time, connection size, control mode, environment temperature and others, our company can produce customized product specially.
